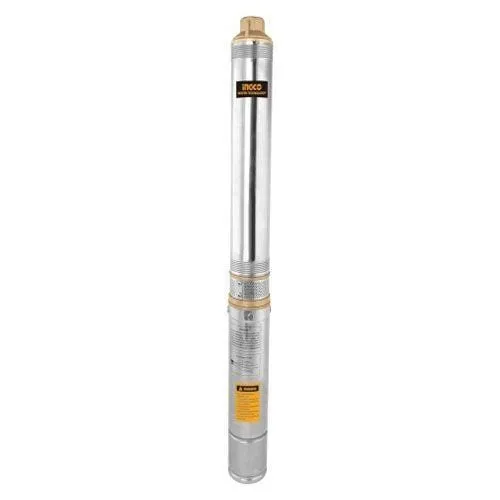

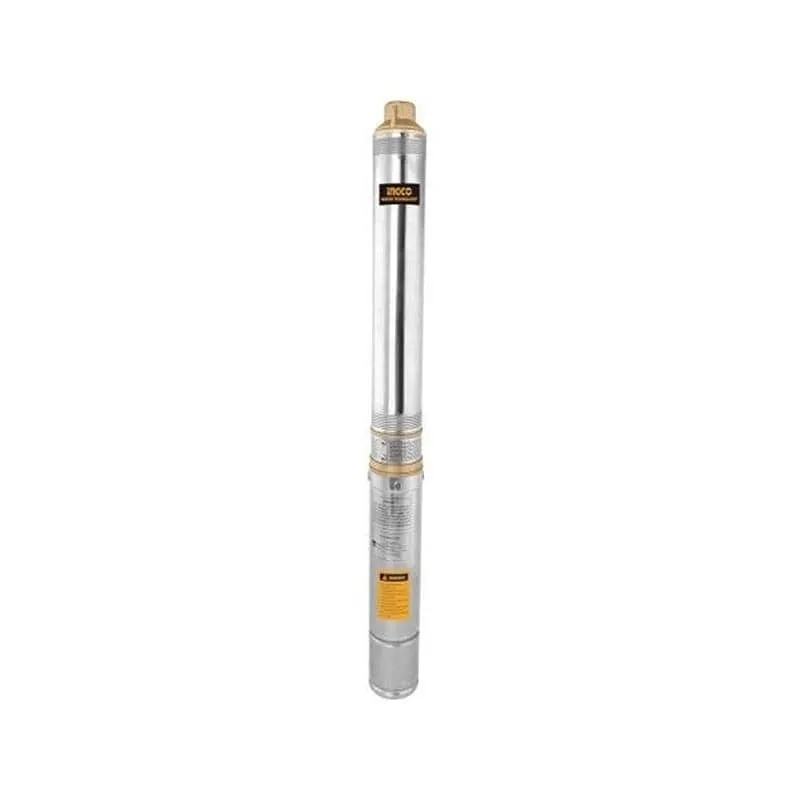

Reliable and powerful, the Ingco Deep Well Pump series is designed for efficient water extraction from deep wells. With a stainless steel pump body and high-performance copper wire motor, these pumps ensure durability and superior water flow. Available in multiple power options from 0.5HP to 3HP, they cater to different well depths and flow requirements.
Key Features:
- Multiple Power Options: 0.5HP to 3HP for various applications.
- Max Head: Reaches up to 180 meters for deep well pumping.
- Max Flow Rate: Up to 6.0m³/h for consistent water supply.
- Durable Build: Stainless steel pump body for longevity.
- Efficient Motor: Copper wire motor ensures optimal performance.
- Multi-Stage Impeller: Ranges from 6 to 23 stages for powerful water lift.
- Convenient Installation: 20m cable included for select models.
Specifications:
| Model | Power | Max Head | Max Flow | Pipe Diameter | Impeller | Cable Length | Control Box |
|---|---|---|---|---|---|---|---|
| DWP3701 (0.5HP) | 370W | 48m | 5.0m³/h | 1 1/4" | 6 stage | - | ❌ |
| DWP5501 (0.75HP) | 550W | 64m | 6.0m³/h | 1 1/4" | 8 stage | 20m | ❌ |
| DWP7501 (1HP) | 750W | 80m | 6.0m³/h | 1 1/4" | 10 stage | 20m | ❌ |
| DWP11001 (1.5HP) | 1100W | 112m | 6.0m³/h | 1 1/4" | 14 stage | 20m | ❌ |
| DWP15001 (2HP) | 1500W | 135m | 6.0m³/h | 1 1/4" | 17 stage | 20m | ❌ |
| DWP22001 (3HP) | 2200W | 180m | 6.0m³/h | 1 1/4" | 23 stage | 20m | ❌ |
Perfect For:
- Deep well water extraction for residential, agricultural, and commercial use.
- Providing a consistent water supply in areas with low water tables.
- Long-term applications requiring durability and reliability.
Built for efficiency and power, the Ingco Deep Well Pump series ensures dependable water flow for every need.
